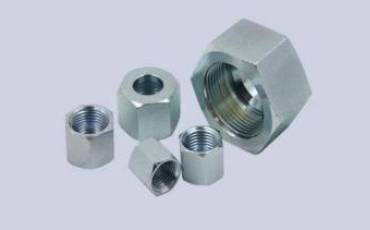

NUT AND FERRULE 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Raw material grade – carbon steel /ss304/316/brass 3. Sealing angle – 24 degree - -

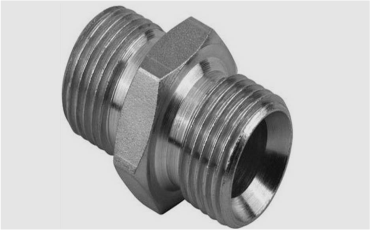

Coupling body pipe end fitting both sides Raw material grade – carbon steel /ss304/316/brass MM SERIES 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Sealing angle – 24 degree
Coupling body pipe end fitting both sides Raw material grade – carbon steel /ss304/316/brass INCHES SERIES THREAD SIZE –1/4” TO 2” Sealing angle – 60 degree - -

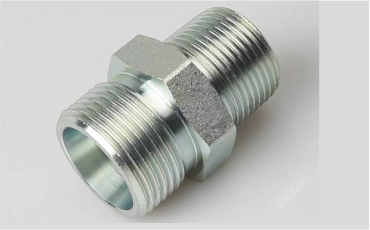

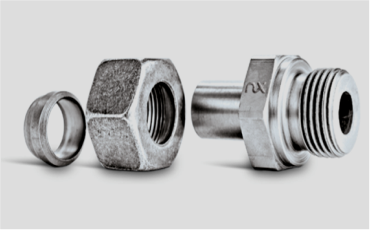

Coupling body parallel male Raw material grade – carbon steel /ss304/316/brass MM SERIES 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Sealing angle – 24 degree

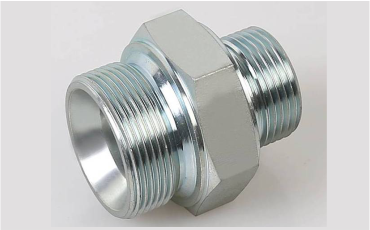

Coupling body parallel male Raw material grade – carbon steel /ss304/316/brass INCHES SERIES 1. THREAD SIZE –1/4” TO 2” 2. Sealing angle – 60 degree

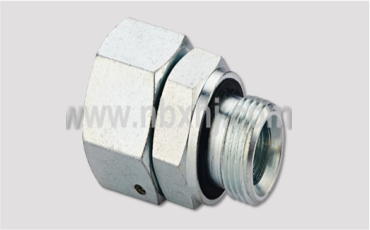

Coupling body parallel male swivel connector wire lock/nut crimped Raw material grade – carbon steel /ss304/316/brass MM SERIES 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Sealing angle – 24 degree
Coupling body parallel male swivel connector wire lock/nut crimped Raw material grade – carbon steel /ss304/316/brass INCHES SERIES 1. THREAD SIZE –1/4” TO 2” 2. Sealing angle – 60 degree
Coupling body parallel male swivel connector ferrule series(mm) 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Raw material grade – carbon steel /ss304/316/brass 3. Sealing angle – 24 degree

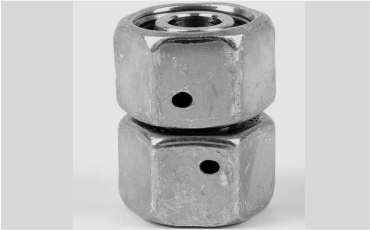

Coupling body swivel connector both sides ferrule series(mm) THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series Raw material grade – carbon steel /ss304/316/brass Sealing angle – 24 degree -

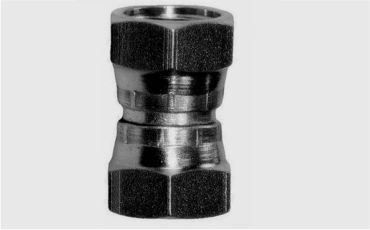

Swivel connector both sides crimped / wire lock series Raw material grade – carbon steel /ss304/316/brass MM SERIES 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Sealing angle – 24 degree
Swivel connector both sides crimped / wire lock series Raw material grade – carbon steel /ss304/316/brass INCHES SERIES 1. THREAD SIZE –1/4” TO 2” 2. Sealing angle – 60 degree

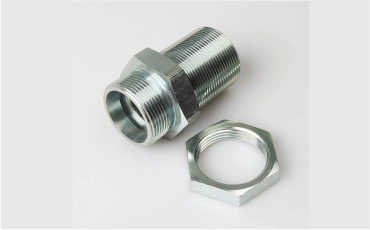

BULK HEAD STRAIGHT COUPLING THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series Raw material grade – carbon steel /ss304/316/brass Sealing angle – 24 degree MM SERIES 1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series 2. Sealing angle – 24 degree
BULK HEAD STRAIGHT COUPLING THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series Raw material grade – carbon steel /ss304/316/brass Sealing angle – 24 degree INCHES SERIES 1. THREAD SIZE –1/4” TO 2” 2. Sealing angle – 60 degree
